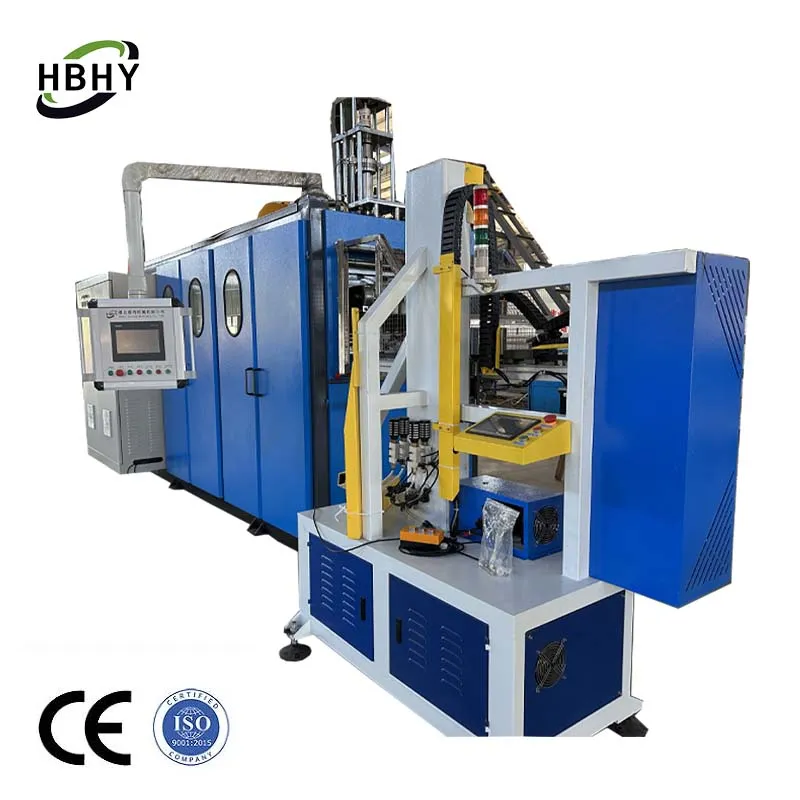

Hydraulic khob ua tshuab
Nws yog tsuas yog siv rau zus tau tej cov tableware, txias haus khob, yogurt khob, jelly khob, ice cream khob, khoom noj txom ncauj lub thawv, yas tais, mis nyuj tshuaj yej npog, thiab lwm yam. Tib lub sij hawm nws kuj yuav siv tau los ua tshuaj, lub teeb kev lag luam, textile, tourism, khoom ua si, thiab lwm yam khoom ntim yas.
Tsis siv neeg Hydraulic khob ua tshuab
Daim ntawv thov
Hy-750 Hydraulic khob ua tshuab
Yas hydraulic khob thermoforming tshuab yog peb cov khoom tsim tau ntev, Sheet noj thiab ncab ib feem yog tsav los ntawm servo motor.Machine tsim cov khoom siv pov tseg, xws li khob yas, tais, hau, thiab lub thawv los ntawm kev ua haujlwm ntawm daim ntawv noj, daim ntawv cua sov, sib sau, txiav thiab tshuab, dav siv thiab haum rau feem ntau ntawm cov neeg thov. PLC rau kev pab cuam, phau ntawv interface rau kev ua haujlwm, ruaj khov, tsis muaj suab nrov, thiab ua haujlwm siab.
|
Parameters |
HY-750 hydraulic khob ua tshuab |
|
Daim ntawv haum |
PP, PE, PS, PVC, PET, ABS, HIPS, biodegradable cov ntaub ntawv, thiab lwm yam |
|
Daim ntawv thickness |
0.3-2.0㎜ |
|
Haum daim ntawv dav |
540-720㎜ |
|
Max Mould puag loj |
520 × 740 hli |
|
Max tsim qhov tob |
180㎜ |
|
Txoj kev ceev (Max.) |
Tsawg dua lossis sib npaug li 30 zaug / feeb |
|
Cua sov ntsuas muaj peev xwm |
140 kwv |
|
Main lub cev muaj peev xwm |
15kw / 6 ncej |
|
Siv zog |
380V / 50Hz (peb theem, plaub xaim) |
|
Siv cua siab |
0 6-0.8Mpa |
|
Kev siv cua |
2500-3500L/min |
|
Kev siv dej |
40-45L/min |
|
Qhov hnyav |
Txog 7T |
|
Tshuab qhov tseem ceeb |
|
|
Kov Screen / PLC |
SIEMENS (Lub teb chaws Yelemees) |
|
Servo Tsav |
YASKAWA (Nyiv) |
|
Contactor |
Schneider |
|
Sib Nqus Hloov |
Omron |
|
Kub tswj analog module |
KZSCR |
|
Kub tswj module |
FOTEK, TAIWAN |
|
Zaus converter |
Toshiba Nyiv |
|
Relay |
Omron |
|
Hloov fais fab |
MW TAIWAN |
|
DC solid-state relay |
FOTEK, TAIWAN |
|
Sib Nqus Hloov |
Omron |
|
Cua hloov |
Schneider |
|
Pneumatic Solenoid valve |
SMC JAPAN |
|
HYDRAULIC SOLENOID VALVE |
YUKEN |
|
Lub rhaub |
Jiangsu |
|
Lub cev muaj zog |
Wannan |
|
Iav reducer lub cev muaj zog |
YONGKUN TAIWAN |
|
Hydraulic roj twj tso kua mis |
TECK |
|
SERVO daim duab |
Yaskawa, Nyiv |
|
Pob ntsia hlau |
Technical Nanjing |
Main Function
- Qhov zoo thiab qhov tsis zoo ntawm kev tsim cov cuab yeej.
- Vacuum forming device.
- Kov screen computer kub module taw tes rau taw tes tswj muaj nuj nqi.
- Cua tswj ntaus ntawv.
- Lub tshuab cua txias.
- Tuag, pwm kub tswj muaj nuj nqi.
- Tsis siv neeg xuas nrig ntaus thiab txiav ua haujlwm.
- Tsis siv neeg pawg suav muaj nuj nqi.
- Ntug tsis siv neeg rewinding muaj nuj nqi.
- Cov cuab yeej tiv thaiv kev nyab xeeb.
Kov npo thiab PLC yog Siemens ua haujlwm tsis siv neeg, tswj kom raug. Cov ntaub ntawv khaws cia ua rau cov txheej txheem ua haujlwm yooj yim dua.
Chaw Ua HaujlwmChaw Ua Haujlwm
Nws yog tsav los ntawm 4 * D80 ncej nrog cov khoom ntawm 45＃ steel, sab nraud yog tawv chrome plated, nruj heev. Hnav resistant thiab ncua lub neej pwm.
Servo Stretching TsavServo Stretching Tsav
Nws siv YASKAWA (JAPAN) tswj lub siab thiab nqes tuag. Nws tuaj yeem ua kom lub thickness ntawm txhua qhov sib xws.
Hydraulic System
Hydraulic system muab tag nrho lub zog thiab muaj peev xwm xuas nrig ntaus.
Lub rhaub
Lub tshuab cua sov siv lub tshuab nqus tsev rwb thaiv tsev paj rwb. Nws shorts ua lub sij hawm thiab txuag lub zog.
Cov saw
Cov saw hlau pub siv cov hlua khi ob kab sib txuas, thiab cov kev taw qhia kev tsheb nqaj hlau yog forged los ntawm 45 # steel, nrog rau siab hardness thiab kev pab lub neej ntev.
Tshuab Nta
- Tsis siv neeg daim ntawv feeder nrog square steel qauv, siab hnav tsis kam, ruaj khov dua, ua tau zoo, qhov tseeb ntawm kev pub mis loj tuaj yeem txhim kho los ntawm kev pub mis tsis siv neeg.
- Cov khoom siv sib xyaw ua ke nrog lub tshuab, uas yog tswj los ntawm lub tog raj kheej, tuaj yeem txav mus los. Nws yooj yim rau kev khiav lag luam, thiab txuag tau ntau qhov chaw.
- Tshuab txais PID kub qhov system, nws qhia tau hais tias siab precision, thiab temp tswj kam rau ua<1ºc
- Movable pwm ntaus ntawv yog yooj yim los sib sau ua ke thiab dismantle pwm, thiab kev co ntawm lub tshuab yuav raug txo los ntawm lub tshuab counterbalance valve tswj qhov qhib thiab kaw ceev, zoo stability, conducive rau txoj kev.
Tuam txhab profile
Hubei RuiMing Machinery Co., LTD tau tsim nyob rau hauv 2017, nrog thaj tsam ntawm 33, 000 square meters thiab ntau tshaj 50 tus neeg ua haujlwm. Nyob rau hauv qhov zoo nkauj Jianghan Plain, lub tuam txhab ua kom abreast ntawm qhov tseeb technologies tsim nyob rau hauv lub tshuab teb. Nrog rau ntau tshaj kaum tus tswv cuab hauv cov pob txha thiab cov kws tsim qauv tsim nrog ntau tshaj 15 xyoo ntawm kev tshawb fawb, kev tsim kho thiab tsim cov khoom siv, lub tuam txhab tshwj xeeb hauv kev tsim ntau yam ntawm cov yas khob thermoforming tshuab /3- chaw nres tsheb / {{ 6}} chaw nres tsheb thermoforming tshuab thiab PP / PS / PET daim ntawv tsim khoom, tau txais lub koob npe zoo hauv kev lag luam.
